Traditional Chinese Architecture: Timber, Dougong and Roofs

Look at a Chinese temple roof and the eye goes straight to the sweeping eaves and glazed tiles. The real story is underneath: a timber frame of columns and beams, joined without nails and topped by clusters of interlocking brackets that carry the roof’s weight outwards and down. Traditional Chinese architecture is one of the most consistent building systems in history, refined over more than two thousand years and spread across East and Southeast Asia.

This article explains the structural logic behind that system, the rules that governed it, how buildings were arranged around courtyards, and where you can see it in Singapore today.

A frame, not a wall

The essential principle of traditional Chinese architecture is that the timber frame carries the load and the walls do not. Columns stand on stone bases, beams span between them, and the roof sits on that skeleton. Walls of brick, rammed earth or timber panels are infill: they enclose space and keep out weather, but they could in principle be removed without the building falling down. A traditional saying puts it neatly: the walls may fall but the house still stands.

This is the opposite of most European masonry traditions, where load-bearing walls do the structural work. It is much closer to a modern column-and-beam frame, and it has the same advantage: openings can be placed freely, and partitions rearranged, because the enclosure is independent of the structure.

Two main framing types are recognised. The post-and-beam (tailiang) type stacks beams of decreasing length on top of one another to build up the roof profile, and was used for large halls. The column-and-tie (chuandou) type uses more numerous, closely spaced columns connected by tie beams that pass through them, and was common in southern China, where it suited smaller houses and a hilly terrain.

Dougong: the bracket set

The most distinctive element of Chinese architecture is the dougong, a cluster of wooden blocks (dou) and bracket arms (gong) stacked at the top of a column or along the beam line. Each layer cantilevers a little further out than the one below, so the cluster can support eaves that project far beyond the columns, protecting timber walls and column bases from rain.

The bracket set does two structural jobs. It transfers the roof’s weight down to the column through a series of bearing points rather than one, and because it is assembled from many interlocking pieces it has a degree of flexibility. Under earthquake loading the joints can rotate and slip slightly, absorbing energy in friction rather than snapping. Engineers studying surviving buildings have long been interested in this behaviour, though it should be described as damping and ductility in the joints rather than as any kind of designed seismic isolation.

One of the oldest surviving timber halls in China, the Great East Hall of Foguang Temple on Mount Wutai, dates from AD 857 and shows the large, bold bracket sets of the Tang dynasty. Over later centuries dougong became smaller and more decorative relative to the building, a change that historians use as one of the clues for dating structures.

The roof and its curves

The roof is the dominant visual element of a Chinese building, and its form carried meaning. Hip roofs, gable roofs, half-hip-and-gable roofs and pyramidal roofs were ranked in a hierarchy, with the double-eaved hip roof reserved for the most important buildings. The gentle concave curve of the roof surface and the upturned corners are produced by the way the purlins are stepped, not by bending timber.

Roof tiles were laid on a bed of clay over timber boarding, which makes these roofs heavy. That weight is part of the system: it presses down on the bracket sets and joints and helps hold the frame together. When traditional roofs are repaired today, any change to the weight of the covering has structural consequences, and the joints need to be checked rather than assumed sound. The Japanese tradition, which drew heavily on Chinese precedent, is covered in our piece on Japanese roof styles.

Modules and rules: the Yingzao Fashi

Chinese architecture was highly standardised. The most important surviving manual is the Yingzao Fashi (“Treatise on Architectural Methods”), compiled by Li Jie, an official of the Song dynasty government building directorate, and printed in 1103. It set out a modular system based on the cross-section of a standard timber member, the cai, available in eight grades. Once a building’s rank and grade were chosen, the sizes of beams, brackets and columns followed proportionally.

That modularity allowed prefabrication: members could be cut to standard dimensions in advance and assembled on site, and the same system could be scaled up or down for buildings of different importance. It is a reminder that rational, rule-based design is not a modern invention. The same idea of a governing module appears in many other traditions, from the classical orders to the Japanese ken grid.

Courtyards, axes and orientation

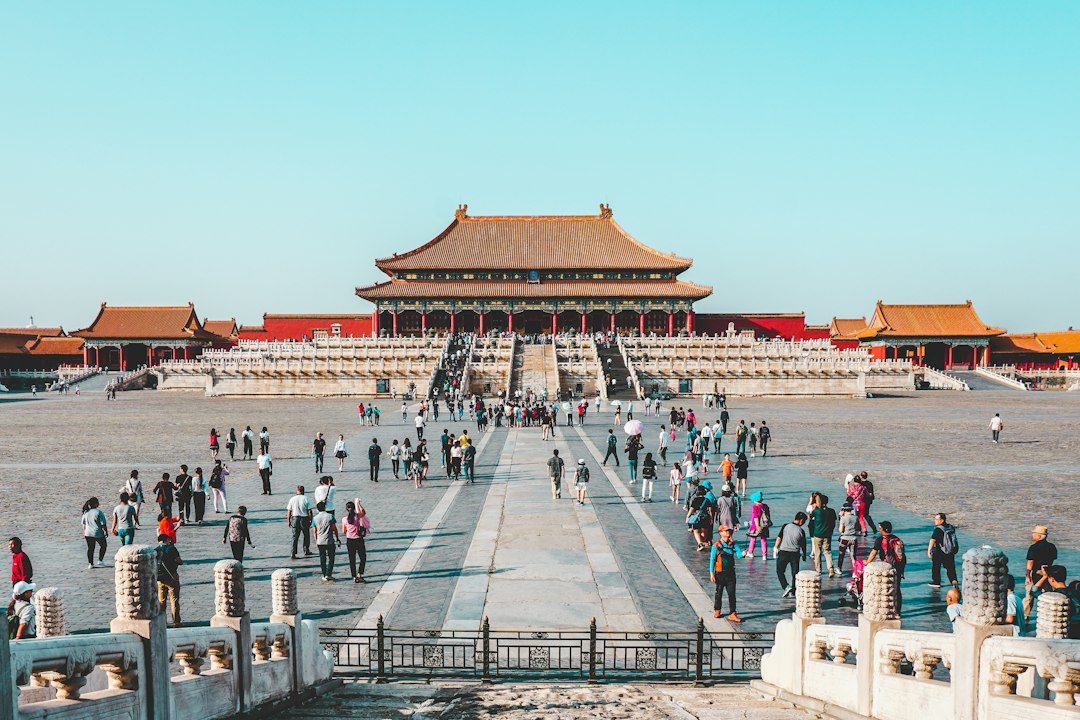

Chinese buildings were rarely conceived as single objects. They were arranged as compounds of halls and pavilions around courtyards, laid out along a central axis, usually facing south. The most important hall sat on the axis, with subsidiary buildings symmetrically on either side. The scale ran from the northern Chinese courtyard house, the siheyuan, to the Forbidden City in Beijing, built in the early fifteenth century under the Ming Yongle emperor as a vast sequence of courts and gates.

Courtyard planning was also climatic. In hot, humid southern China, narrow courtyards and lightwells pulled air through deep plans and provided shade, an idea that travelled with migrants to Southeast Asia and survives in the airwells of Singapore shophouses. Our article on courtyard design discusses how the principle is used today.

Chinese architecture in Singapore

Singapore’s most important example is Thian Hock Keng on Telok Ayer Street, built between 1839 and 1842 by the Hokkien community and dedicated to Mazu, protector of seafarers. It follows the southern Chinese temple tradition: a sequence of halls and courtyards on an axis, timber framing, elaborate carved brackets and a roof ridge decorated with ceramic figures. It was gazetted as a national monument in 1973 and underwent a major restoration between 1998 and 2000.

The influence also runs through domestic building. The Peranakan and Chinese shophouse, with its narrow frontage, airwell and party walls, blends southern Chinese planning with colonial regulations and European ornament, as described in our piece on the Peranakan shophouse. For the wider family of styles, see architectural styles and principles.

Frequently asked questions

What are the main features of traditional Chinese architecture?

The main features are a load-bearing timber frame with non-structural infill walls, dougong bracket sets supporting deep eaves, large curved tiled roofs ranked by importance, symmetrical planning along an axis, and buildings grouped around courtyards, usually facing south.

What is dougong?

Dougong is a set of interlocking wooden blocks and bracket arms placed on top of columns. Each layer projects a little further than the one below, allowing the eaves to extend well beyond the columns, and the many small joints give the assembly some flexibility under movement.

Did traditional Chinese buildings use nails?

The main structural joints were typically mortise-and-tenon and interlocking joints held by friction and fit rather than nails. Metal fixings were used for some secondary purposes, but the frame relied on carpentry, which also allowed buildings to be dismantled and repaired.

What is the oldest Chinese temple in Singapore?

Thian Hock Keng on Telok Ayer Street is widely described as Singapore’s oldest and most important Hokkien temple. The present building dates from 1839 to 1842, replacing an earlier shrine on the site, and it is a gazetted national monument.

Is feng shui part of Chinese architecture?

Siting and orientation principles associated with feng shui influenced how many traditional compounds were placed in relation to hills, water and the cardinal directions. They operated alongside practical concerns such as sunlight, wind and drainage rather than replacing them.
